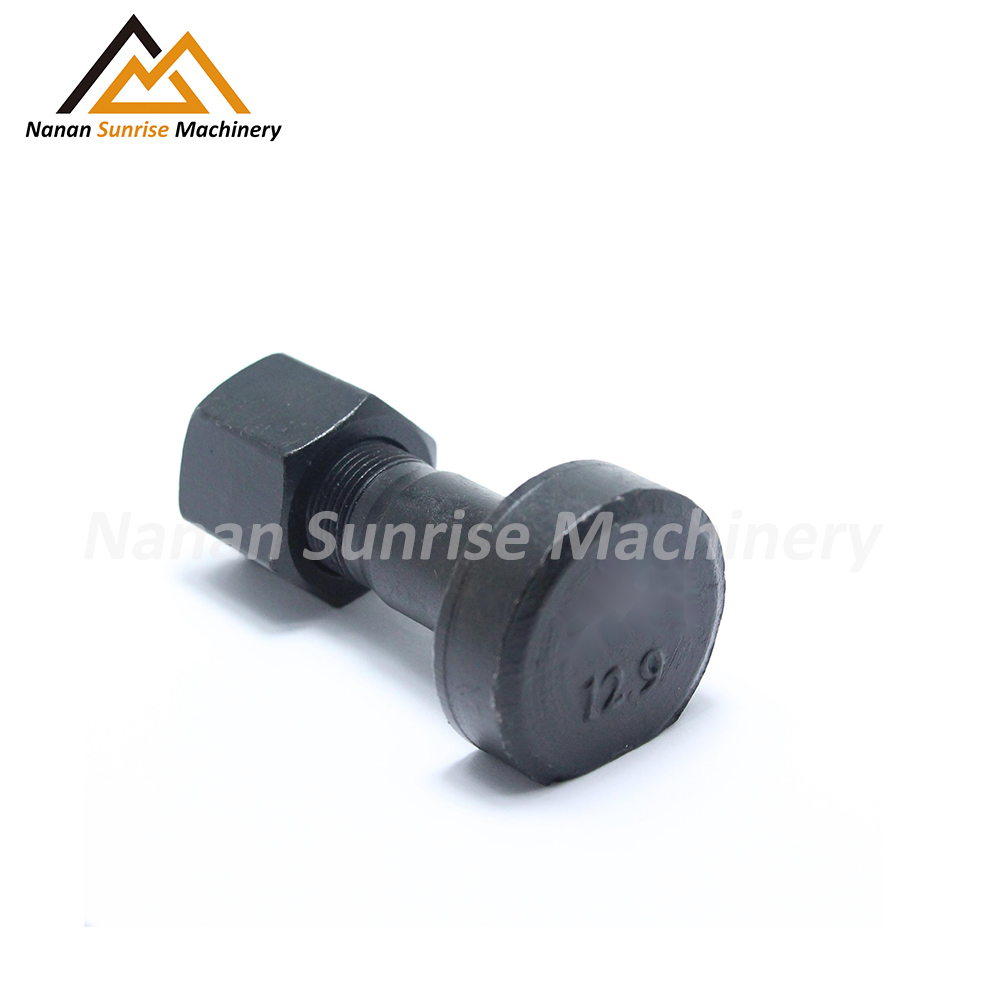

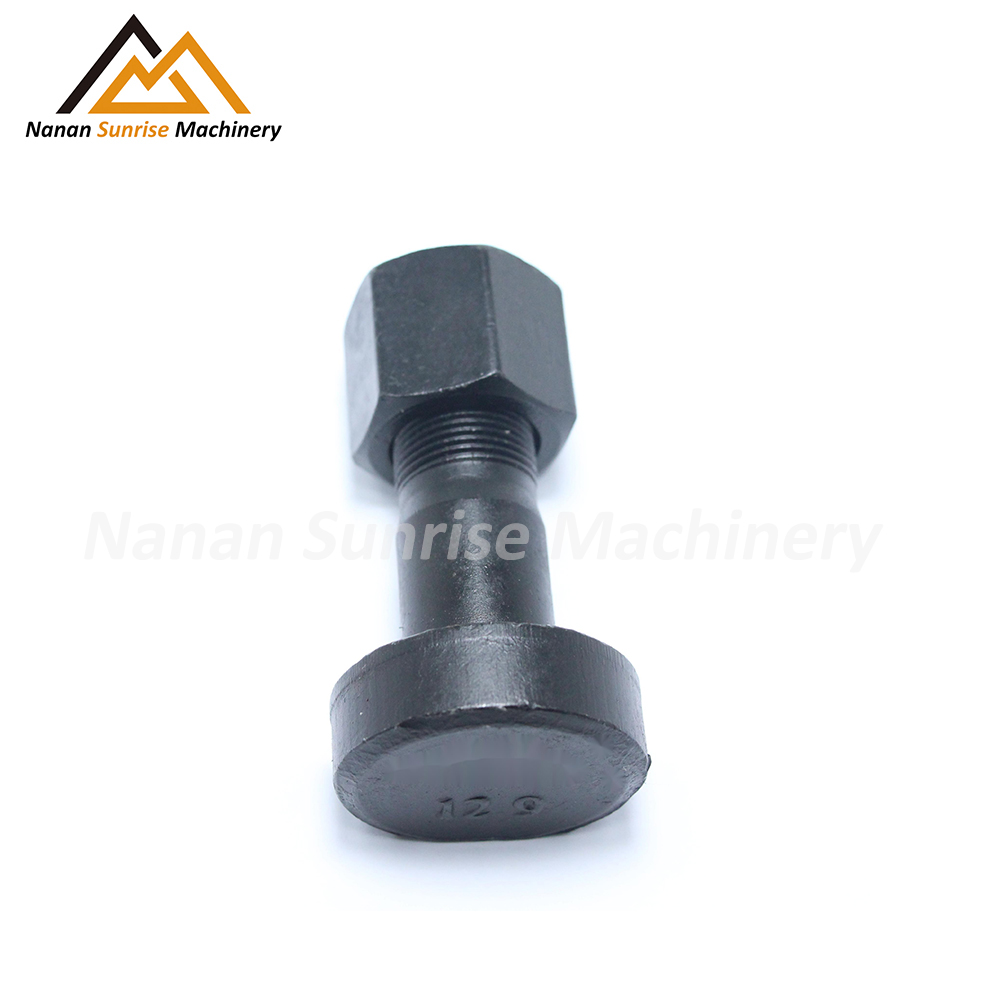

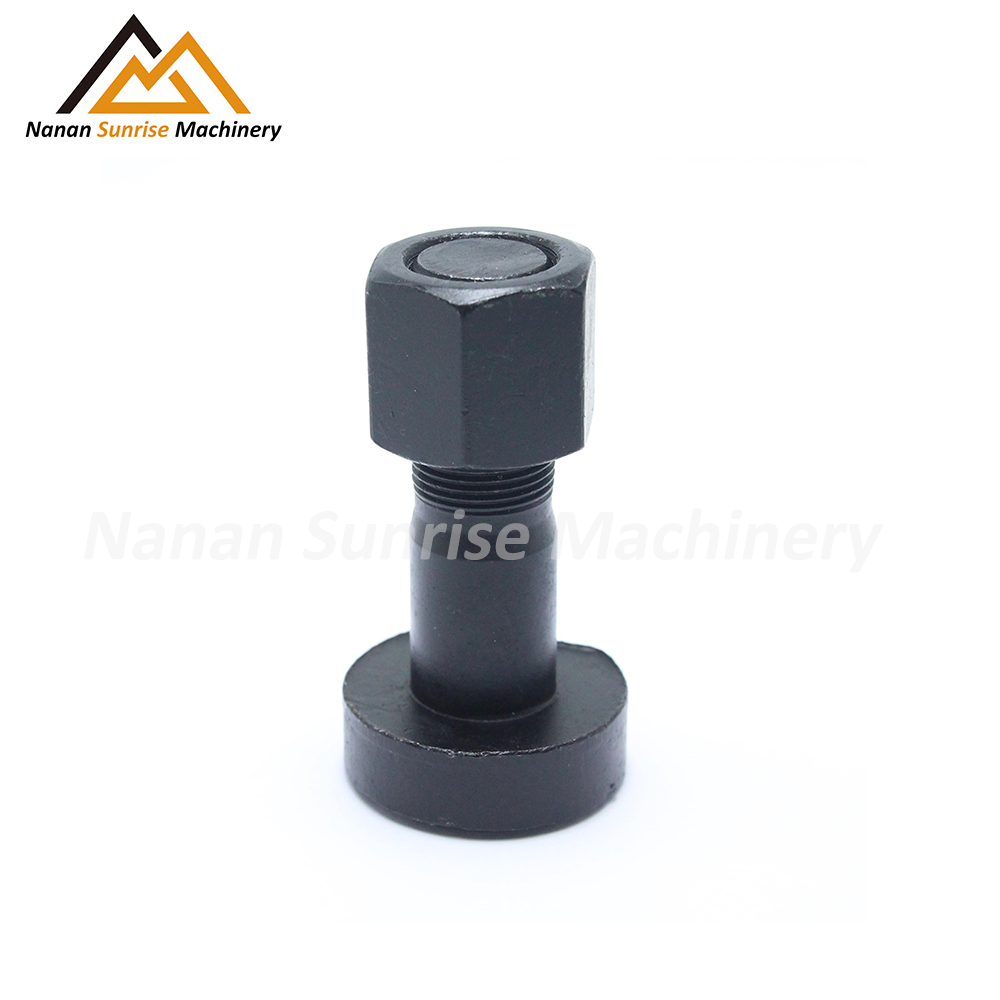

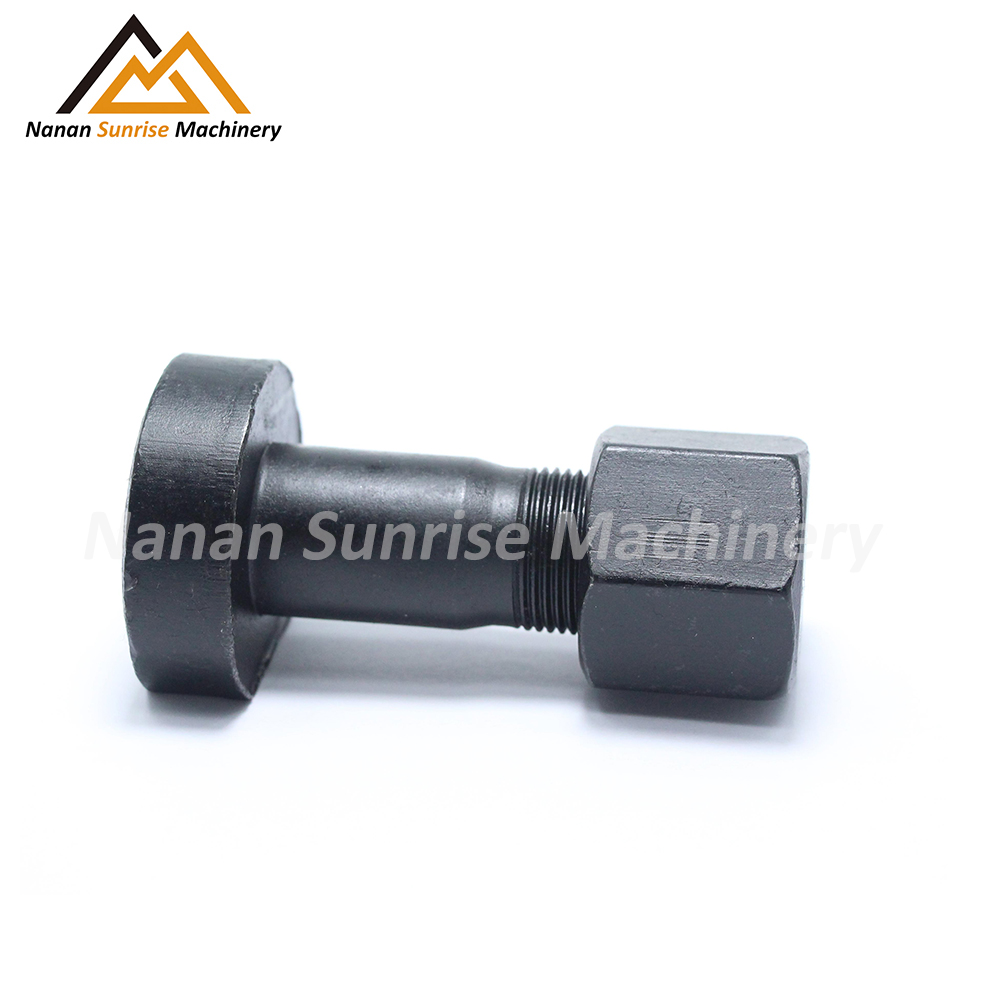

Komatsu Segment Bolt and Hex Nuts OEM NO.: 178-27-11150 & 01803-02430 M24x1.5x80
PRODUCT PARAMETERPARAMETER
Segment bolts and nuts are used to lock the excavator bulldozer segment with other undercarriage parts.
| Product name: | Segment Bolt and Hex Nuts |
| Bolt:size: | M24*1.5*80 |
| Nut size: | M24*.5*30H*36S |
| OEM NO.: | 178-27-11150 & 01803-02430 |
| Machinery model: | Komatsu D155A-5 |
| Material: | 40Cr(SAE5140)/35CrMo(SAE4135)/42CrMo(SAE4140) |
| Grade/Quality: | 10.9 / 12.9 |
| Hardness: | HRC33-38 / HRC39-42 |
| Tensile Strength: | 1040MPa/ 1220MPa |
| Certification: | ISO9001 |
| Finishing: | Phosphated, Zinc plated, Dacromet |
| Color: | Black,Grey,Silver,Yellow |
| Package: | Carton/ Pallet or Customized Packing |
| Payment: | 30% TT in advance, 70% balance shipment shipment |
| OEM: | Available |
| Segment Bolts | |||
| Diameter | Length (mm) | Length (in.) | Reference No. |
| 1/2"-20 (B) | 40 | 1.57 | 9W9265, CR4791 |
| 5/8"-18 (B) | 47 | 1.85 | 3S8182 |
| 5/8"-18(B) | 53 | 2.09 | 6V0937, CR4413 |
| 3/4"-16 (B) | 60.5 | 2.38 | 3S0336, CR2070 |
| 3/4"-16 (B) | 66 | 2.6 | 5P4130, CR4145 |
| 7/8"-14 (B) | 65 | 2.56 | 9S2727, CR2621 |
| 7/8"-14 (B) | 76 | 2.99 | 7T1248, CR3876 |
| 7/8"-14 (B) | 81 | 3.19 | 9W8328, CR4688 |
| 1"-14 (B) | 77 | 3.03 | 5P0233, CR2985 |
| 1"-14 (B) | 92 | 3.62 | 5P5422, CR3889 |
| 1 1/8"-12 (B) | 105 | 4.13 | 7T1243, CR5674 |
| M18-1.5 (B) | 60 | 2.36 | 09203-11860, KM790 |
| M22-1.5 (B) | 70 | 2.76 | 154-27-12320 |
| M22-1.5 (B) | 71 | 2.8 | 155-27-12181, KM225 |
| M24-1.5 (B) | 79 | 3.11 | 178-27-11150, KM555 |
| M24-1.5 (B) | 90 | 3.54 | 195-27-12632, KM539 |
| M27-2.0 (B) | 95 | 3.74 | 195-27-33130 |
Segmented bolts and hexagon nuts for Komatsu D155A-5INTRODUCTION
Introducing our high quality segmented bolts and hex nuts designed specifically for the Komatsu D155A-5 machine model. These essential components are engineered to provide exceptional strength and durability, ensuring optimal performance in demanding applications.
Our segmented bolts and hexagon nuts are made of high-quality materials such as 40Cr (SAE5140), 35CrMo (SAE4135) and 42CrMo (SAE4140) in two grades: 10.9 and 12.9. This ensures that they meet the stringent requirements of heavy machinery applications. These fasteners have hardness grades of HRC33-38 (10.9 grade) and HRC39-42 (12.9 grade) and have excellent tensile strength of up to 1040MPa and 1220MPa respectively.
Our products are ISO9001 certified, guaranteeing consistent quality and reliability. Surface treatment options include phosphating, zinc plating and Dacromet, providing excellent corrosion resistance and extending the life of components. Available in a variety of colors including black, gray, silver and yellow, these bolts and nuts not only provide excellent performance but also diverse aesthetics.
In addition to segmented bolts, our business range also includes a variety of fasteners such as track bolts, sprocket bolts, track roller bolts, bucket tooth bolts and plow bolts. Whether you are engaged in construction, mining or heavy equipment maintenance, our segmented bolts and hex nuts are the perfect choice for your mechanical needs. Trust our products for unmatched performance and durability in the field.
